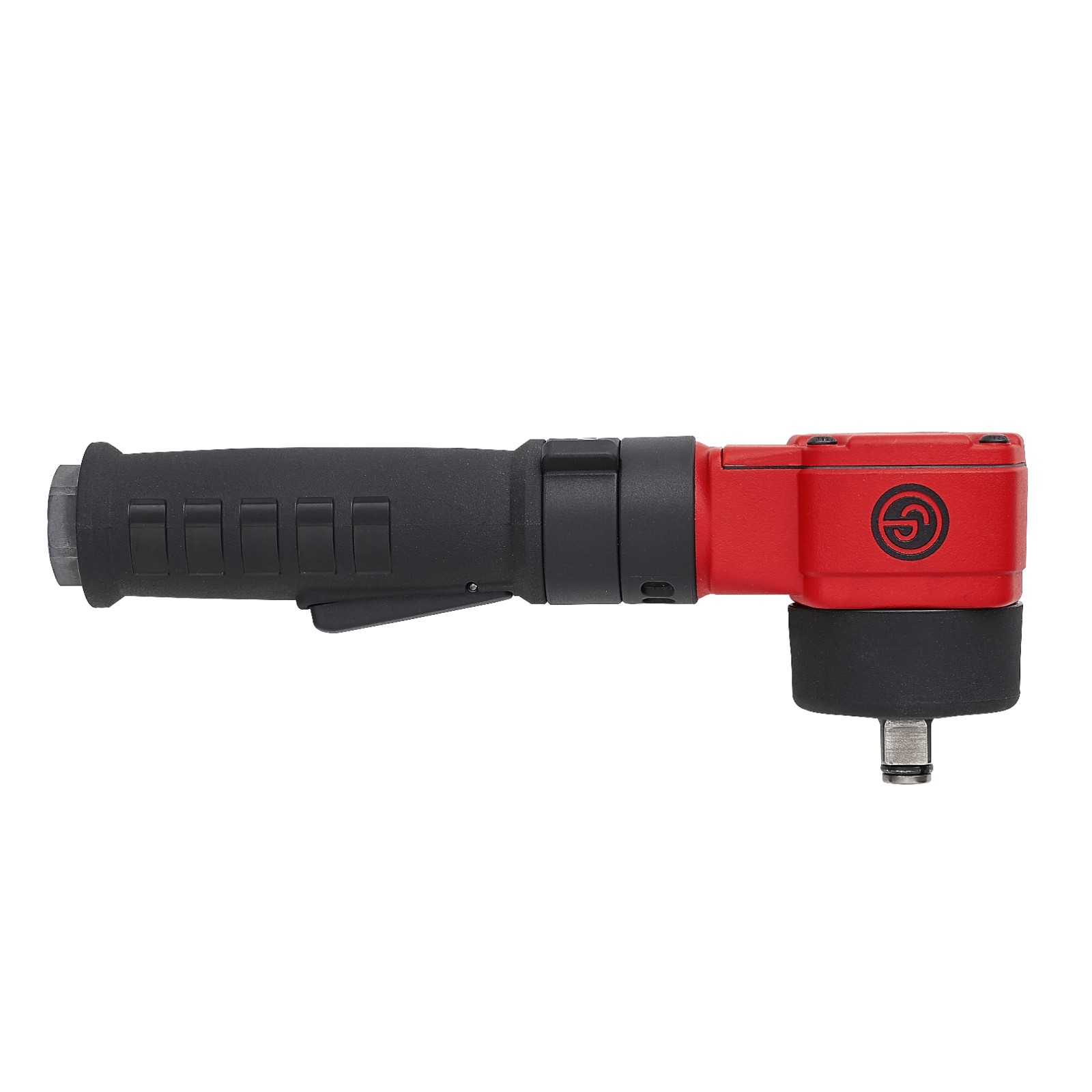

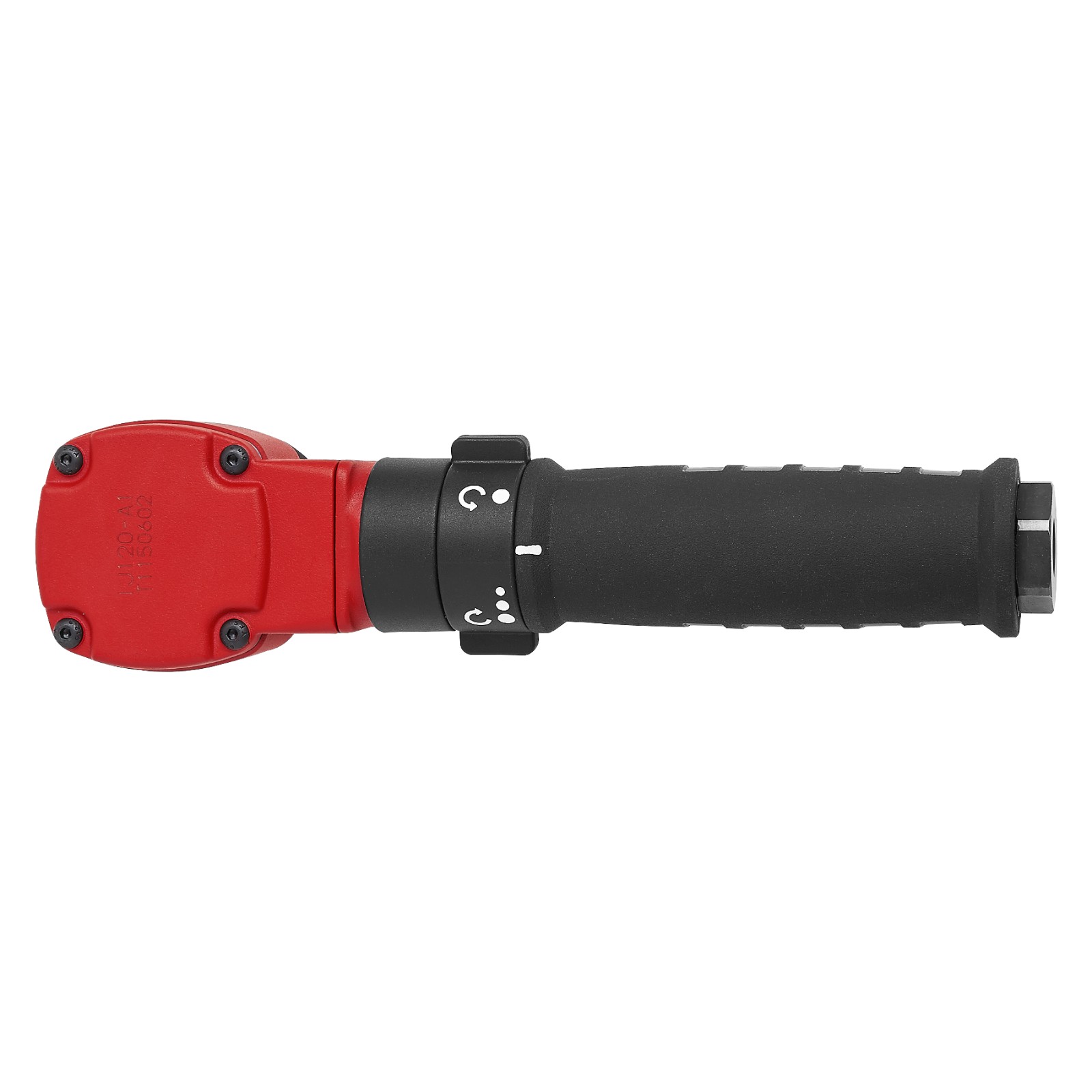

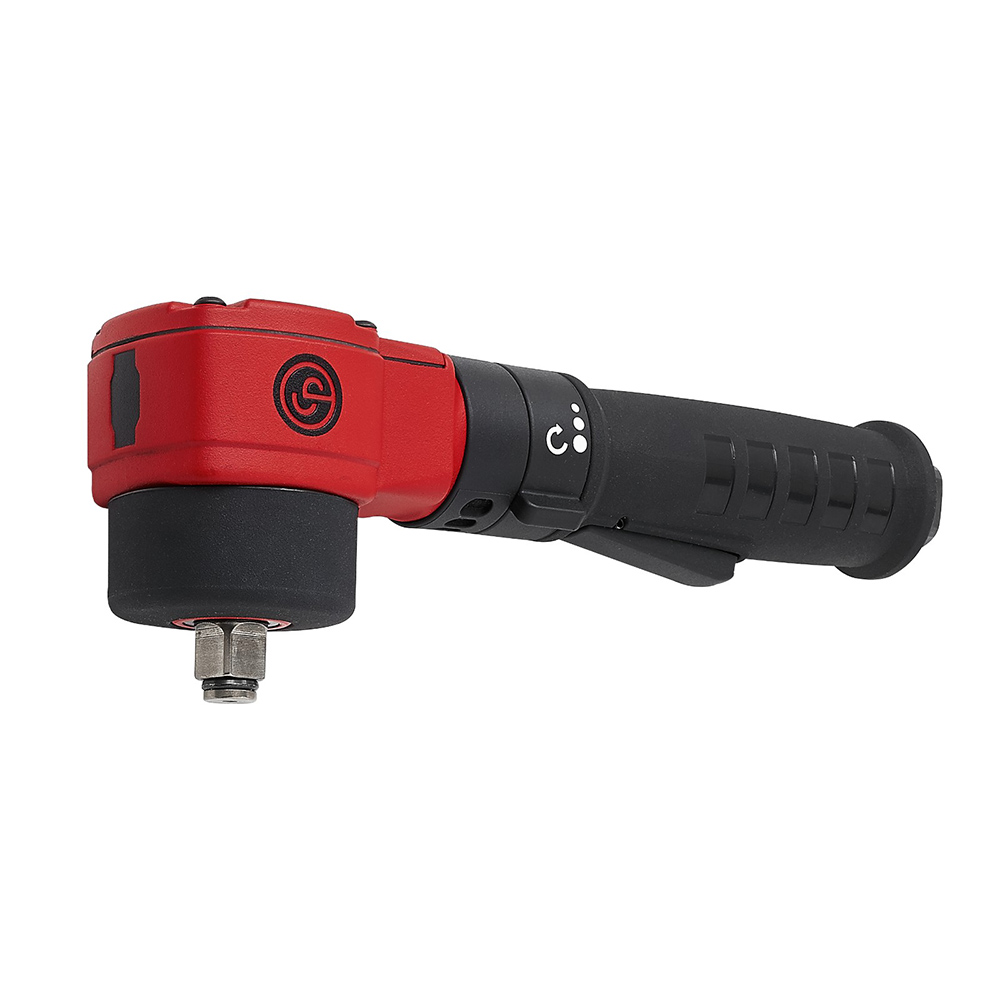

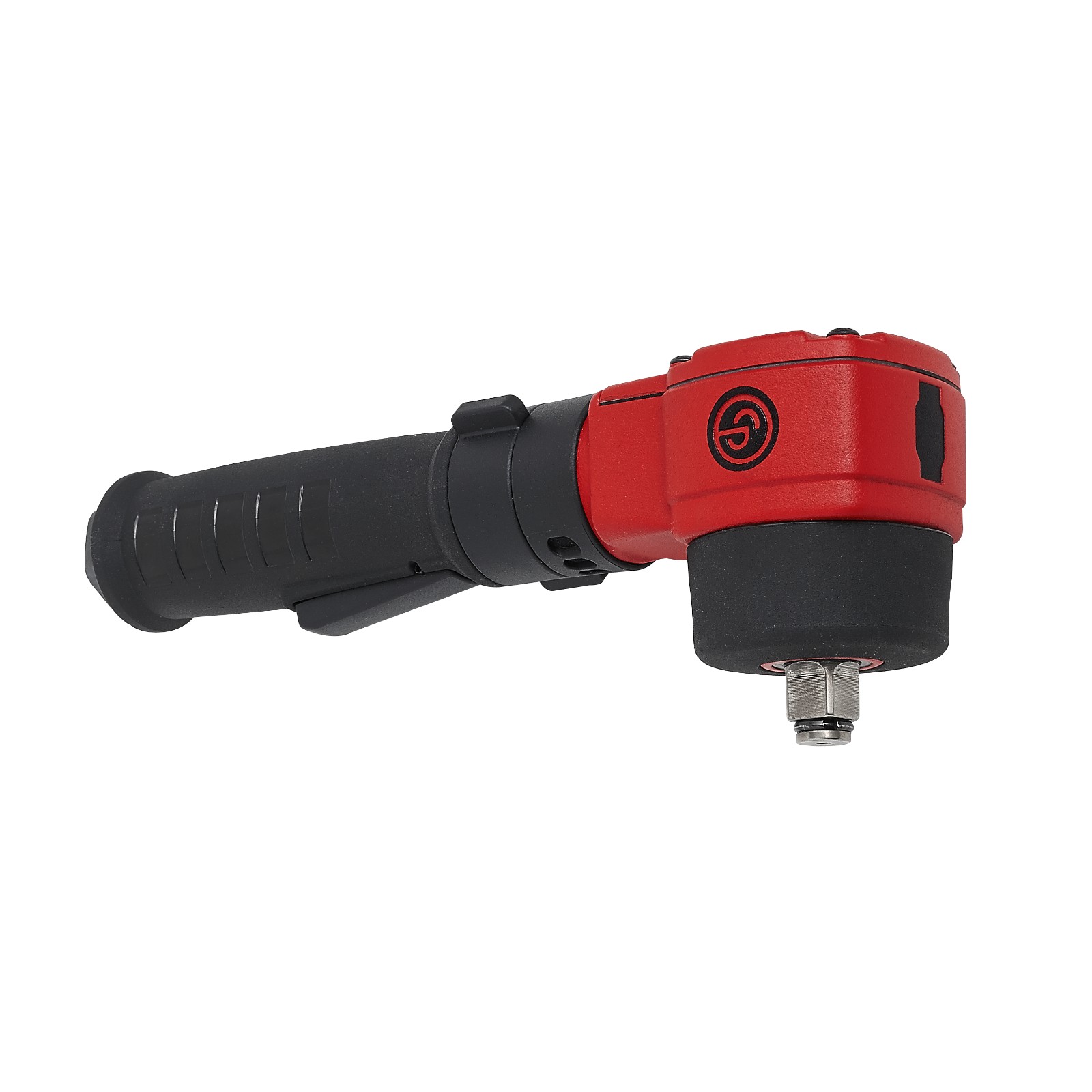

Chicago Pneumatic CP7737 Angled Impact Wrench 1/2″

Product description

Features Include:

• Ultra compact.
• Jumbo hammer mechanism.
• Steel motor.
• Composite cover.
• Direct drive transmission mechanism.
• Over molded composite and ergonomic handle to fit perfectly in hand.
• Full teasing trigger.
• Single handed forward – reverse operation.
• 3 positions in forward and 1 in reverse.
• Socket retainer ring.

Specifications Include:

• 1/2″ Square drive.
• Max torque (rev): 300Nm.
• Overall Length: 240mm.
• Free Speed: 9000 rpm.
• Average air consumption: 1.9 l/s.
• Weight: 1.3kg.
• Working torque (fw): 34-244 Nm.
• Air consumption @ load: 7.5 l/s.
• Air inlet: 1/4″.

Model CP7737
Part number 8941077370
Actual air consumption 7.5 l/s 16 cfm
Air inlet thread size 1/4 “
Average air consumption 1.9 l/s 4 cfm
Blows per minute 1600
Box dimensions 292*100*67 mm
Clutch type Jumbo
Free speed 9000 rpm
Free speed air consumption 11.73 l/s
Handle type Pistol
Length 240 mm 9.4 “
Maximum Torque (reverse) 300 Nm 220 ft.lbs
Min. hose size 10 mm 3/8 “
Net weight 1.13 kg 2 1/2 lb
Side to center 30 mm 1.18 “
Socket retainer Friction ring
Sound Power 104 db(A)
Sound pressure 93 db(A)
Square drive 1/2 “
Vibration 10.3 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) 1.3 m/s²
Working Torque Range (fwd) 34 – 224 Nm 25 – 165 ft.lbs
