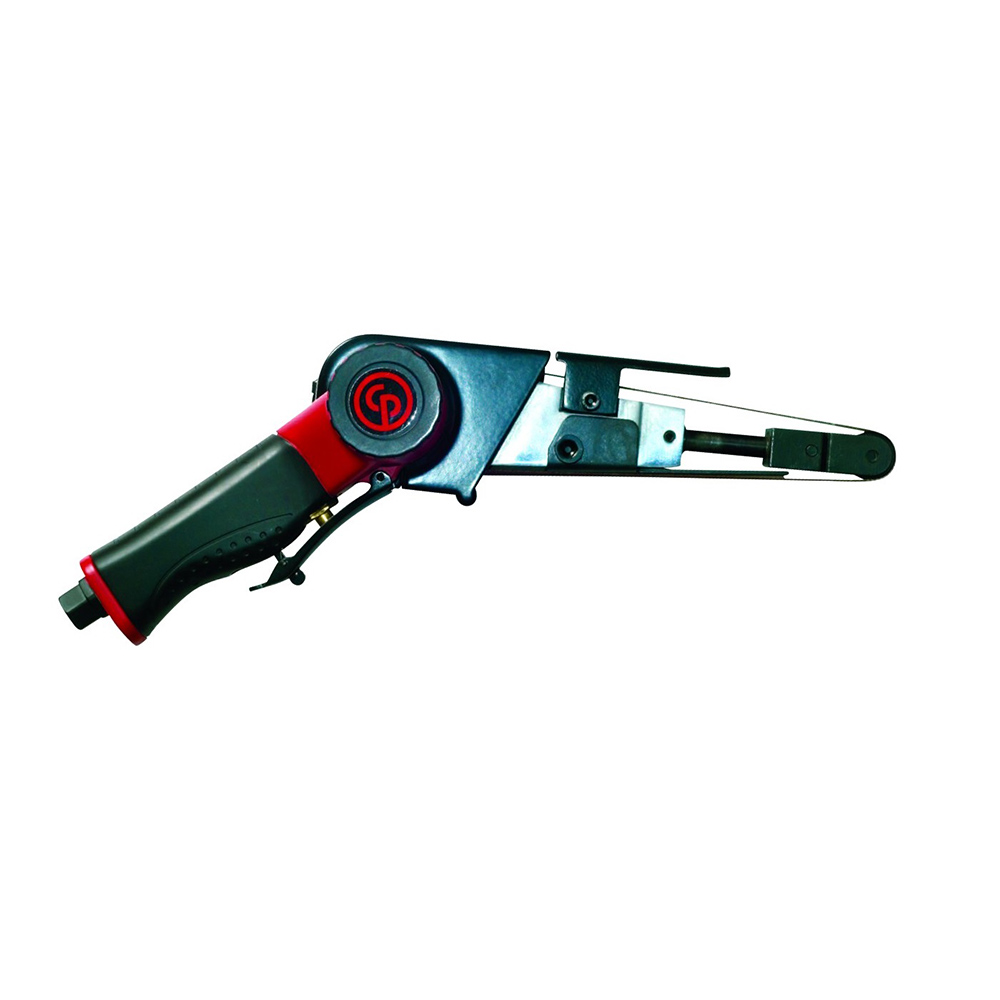

Chicago Pneumatic CP9780 20mm Belt Sander

Product description

Features of CP9780 20mm Belt Sander Include:

• Easy handling and large removal.
• Quick change belt replacement.
• Rubber molded grip.
• Adjustable sanding arm.
• 3/4″ (20mm) capacity.
• Handle exhaust and swivel air inlet.
• Excellent for paint removal, smoothing and rust removal in limited space applications.

Specifications Include:

• Free speed: 20000 rpm.
• Air consumption @ load: 14.1 l/s.
• Belt size: 3/4 x 20.4″  /  20mm x 520mm.
• Length: 380mm.
• Average air consumption: 7.1 l/s.
• Weight: 1.5kg.
• Air inlet: 1/4″.

Model CP9780
Part number 6151939780
Actual air consumption 849 l/mn 30 cfm
Air inlet thread size 1/4 “
Average air consumption 7.1 l/s 15 cfm
Free speed 20000 rpm
Free speed air consumption 6.9 l/s 14.6 cfm
Length 380 mm 15 “
Min. hose size 10 mm 3/8 “
Net weight 1 1/2 kg 3.3 lb
Orbit diameter – mm
Pad diameter 20×520 mm 3/4×20-1/2 “
Paper size 20×520 mm 3/4×20-1/2 “
Power 380 W 0.51 hp
Sound Power 101.5 db(A)
Sound pressure 90.5 db(A)
Vibration Vibration ISO ISO-28927-3
